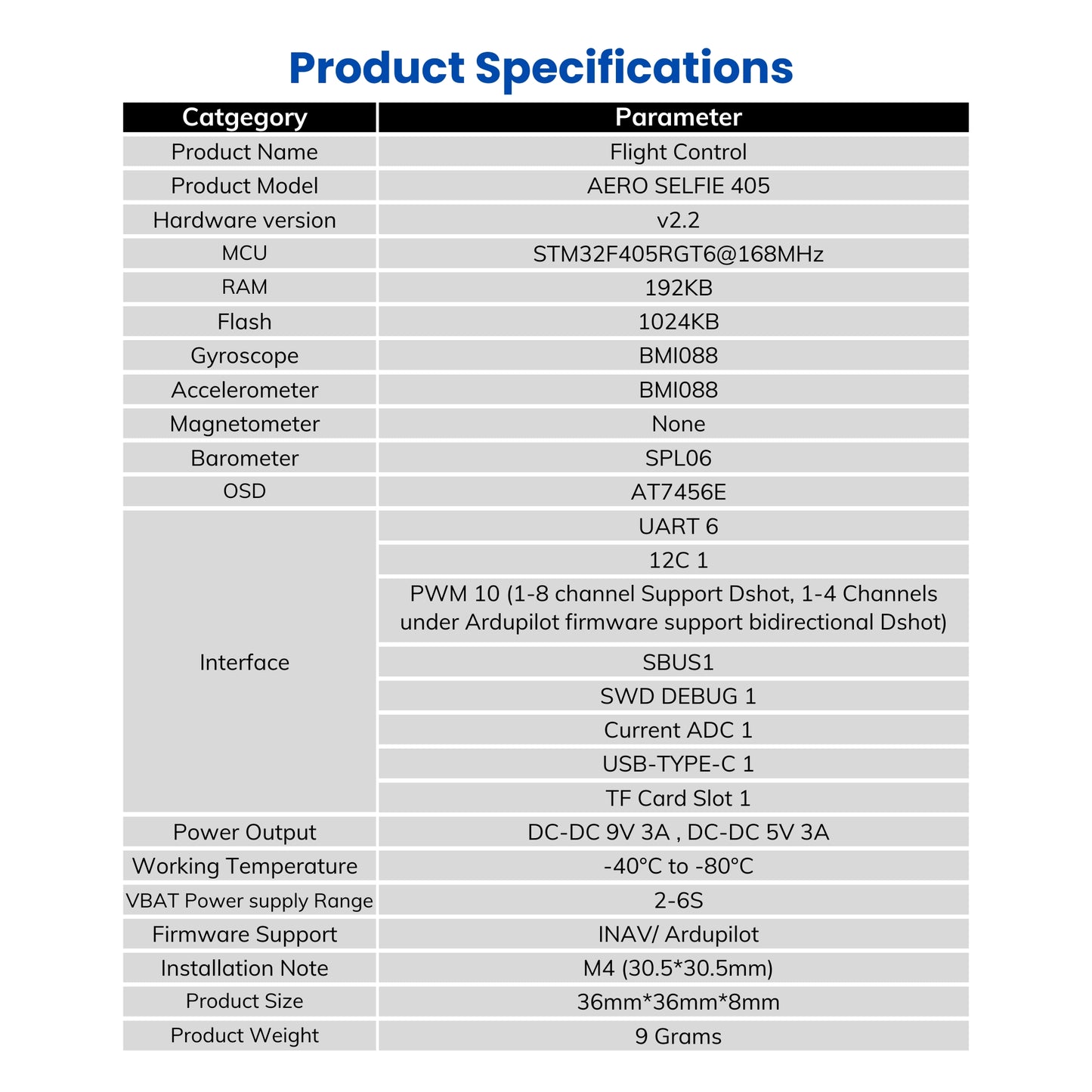

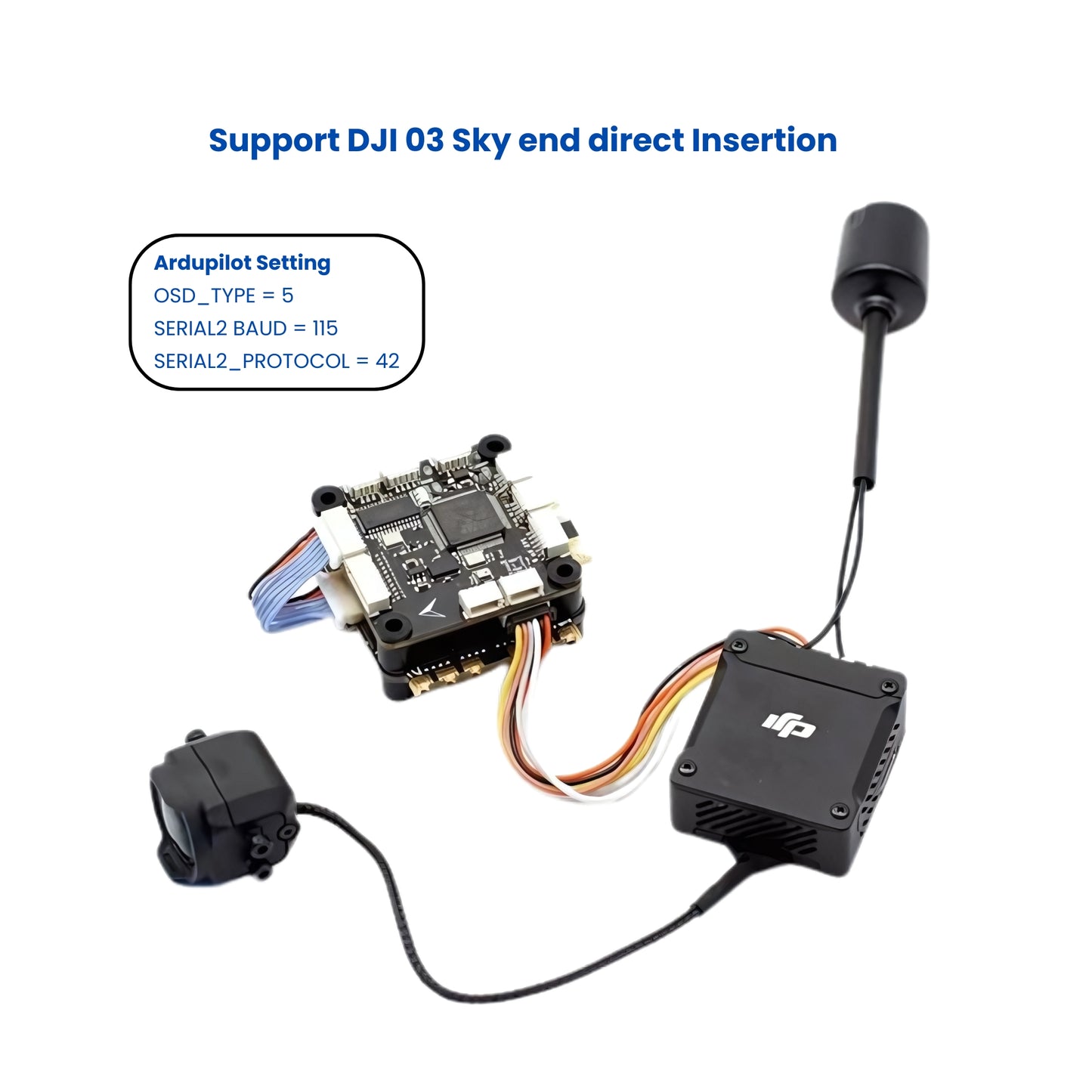

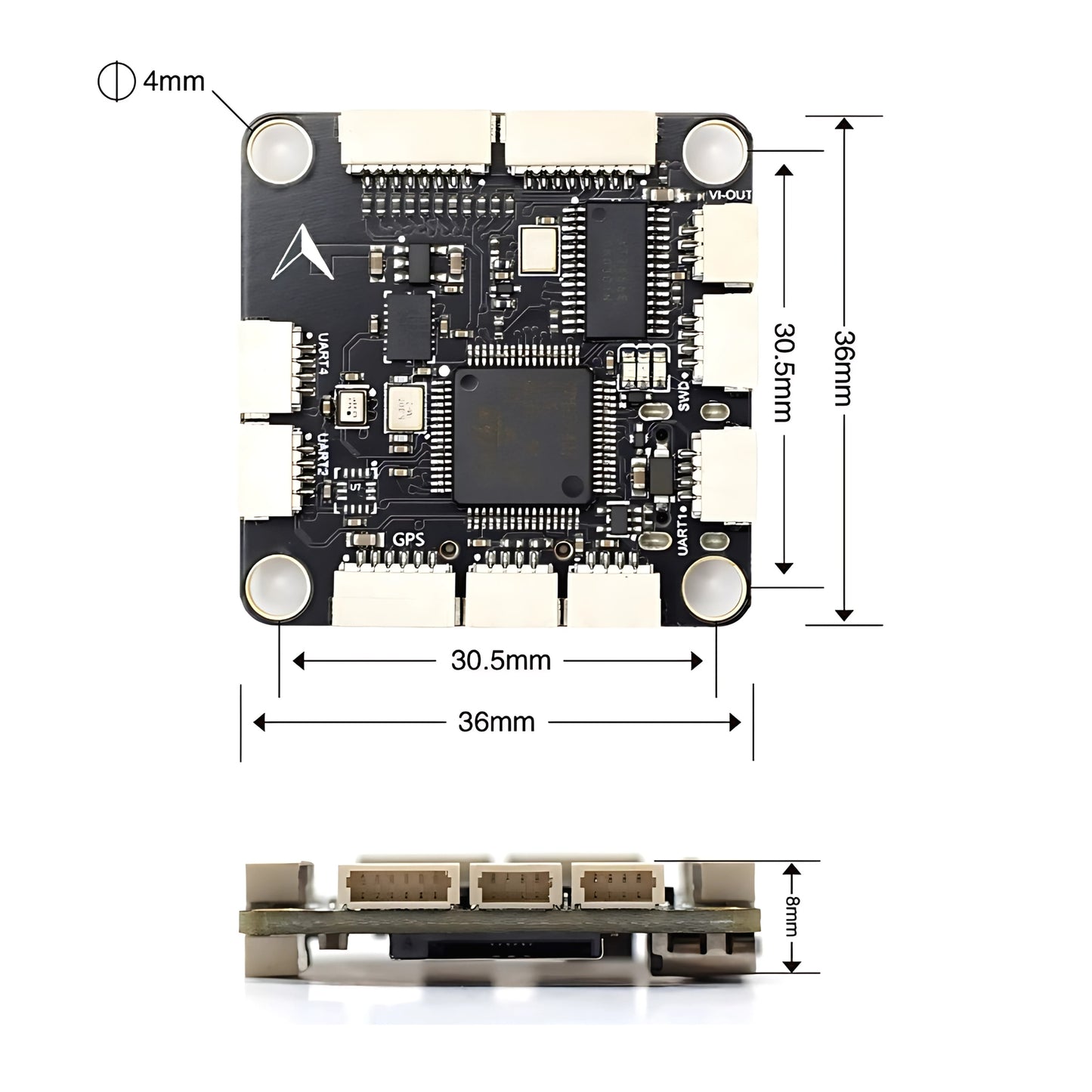

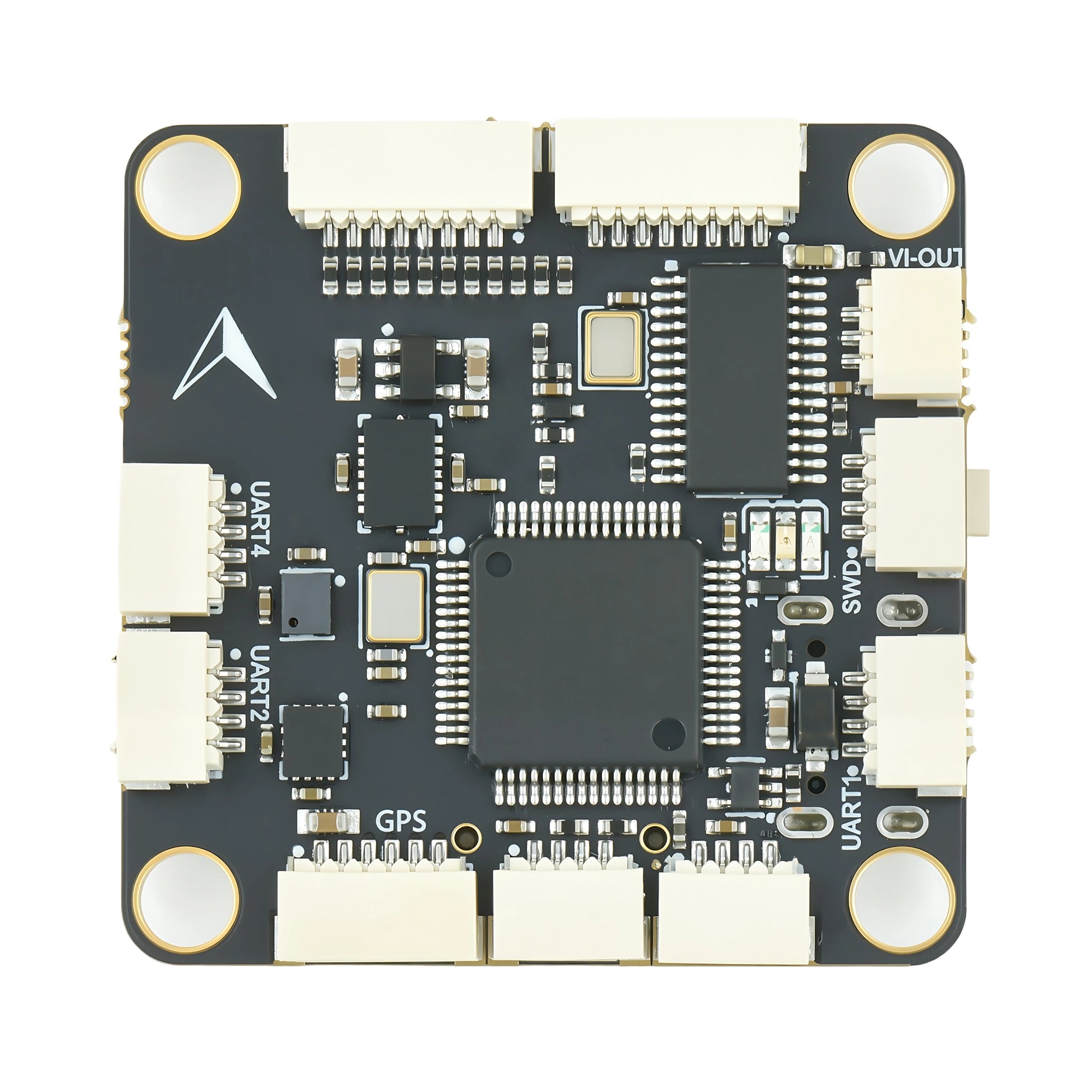

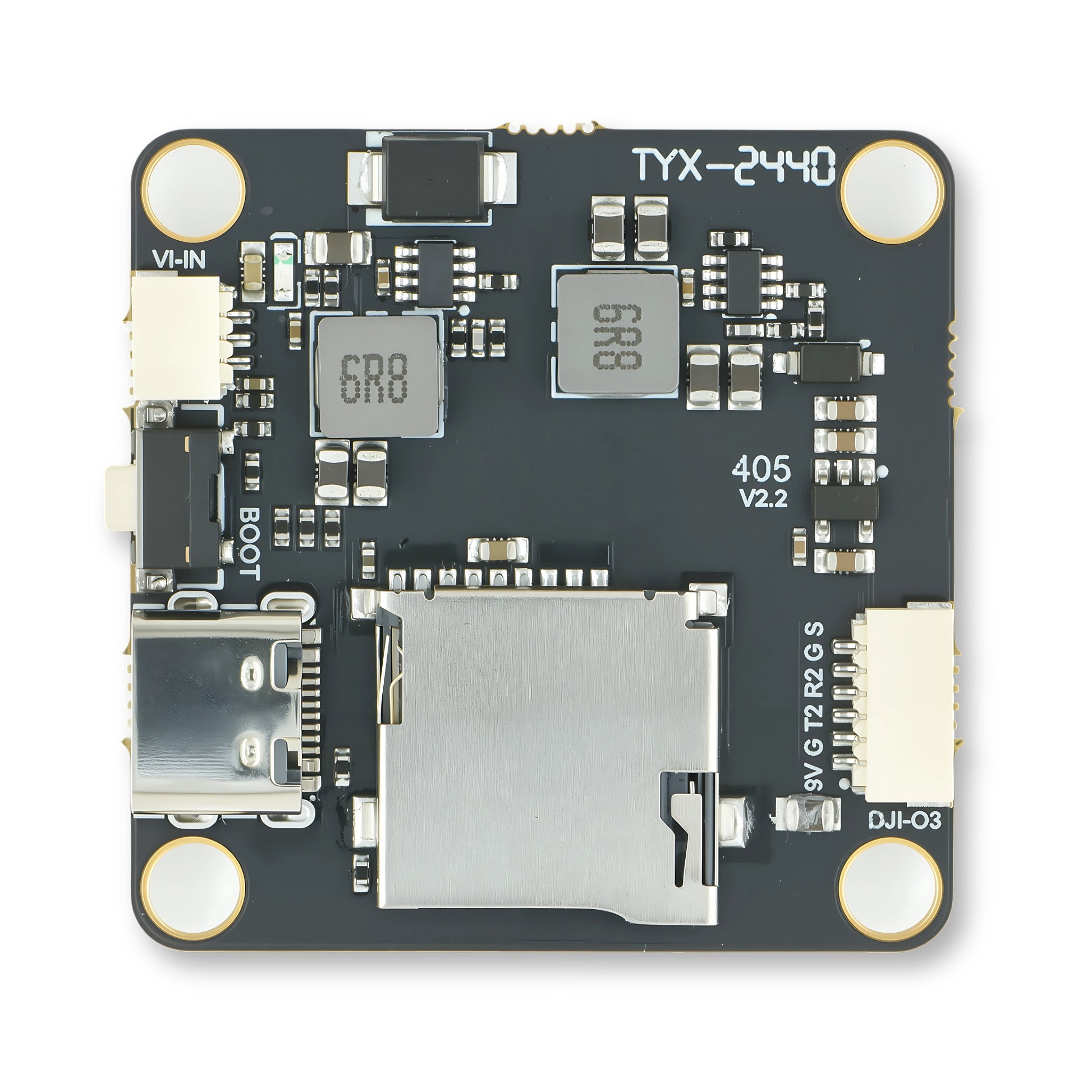

Elevate your drone's capabilities with the F405 V2 Flight Controller, optimized for INAV and Ardupilot firmware. Powered by the STM32F405 processor, it delivers unmatched performance with 6 UART ports, 10 PWM outputs, and robust dual BEC power outputs (5V 3A, 9V 3A) to support GPS, telemetry, DJI O3 Air Units, and other peripherals. Featuring the Bosch BMI088 IMU for superior vibration resistance, an SPL06 barometer for precise altitude control, and an integrated AT7456E OSD chip for real-time telemetry, this controller ensures reliable and smooth flight in all conditions. Designed with compact dimensions (36mm x 36mm x 8mm) and weighing only 9g, it fits seamlessly into most FPV and long-range drone builds. Supporting 2-6S LiPo batteries and with a wide operating temperature range (-40°C to 80°C), this flight controller is built for durability and precision in both recreational and professional drone applications.
