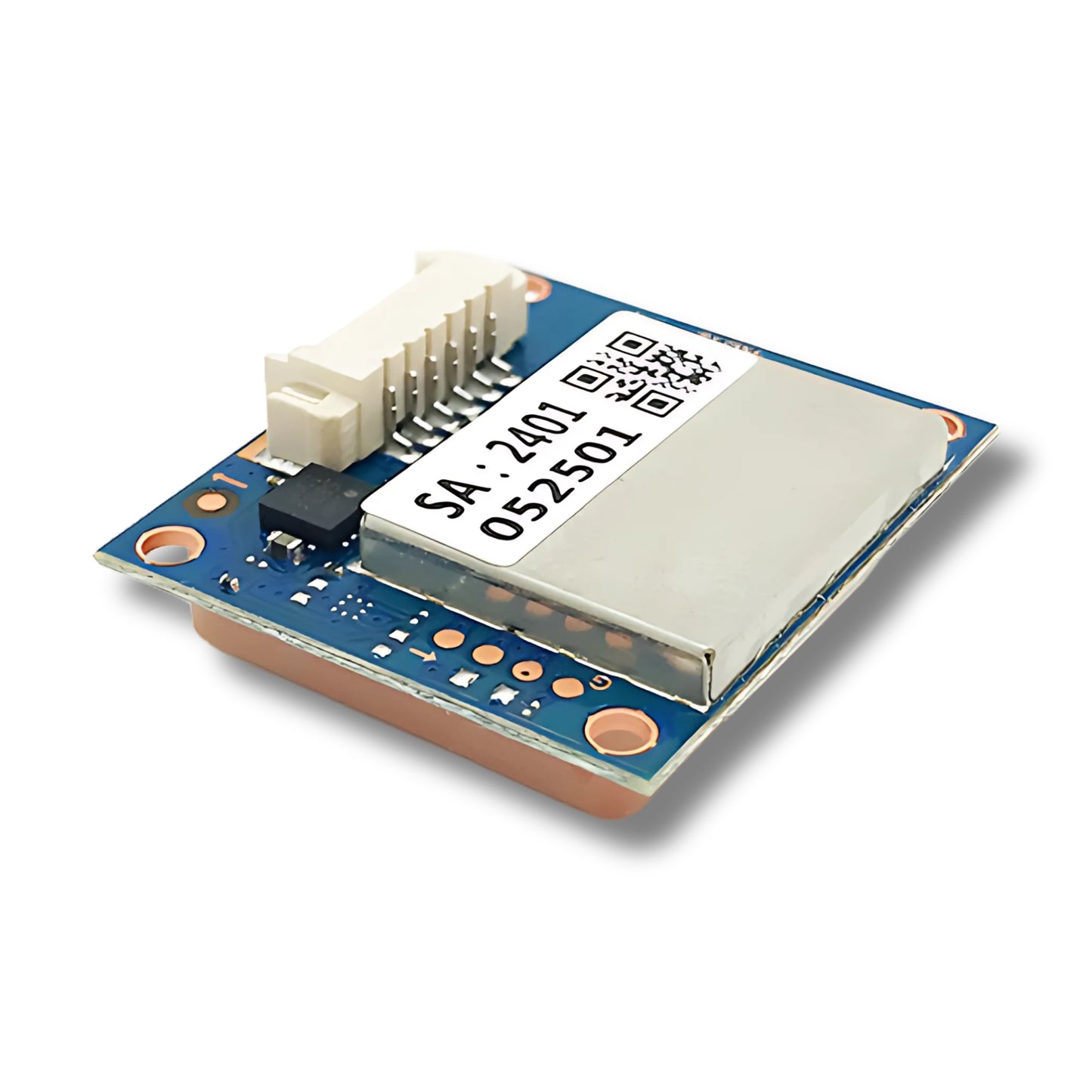

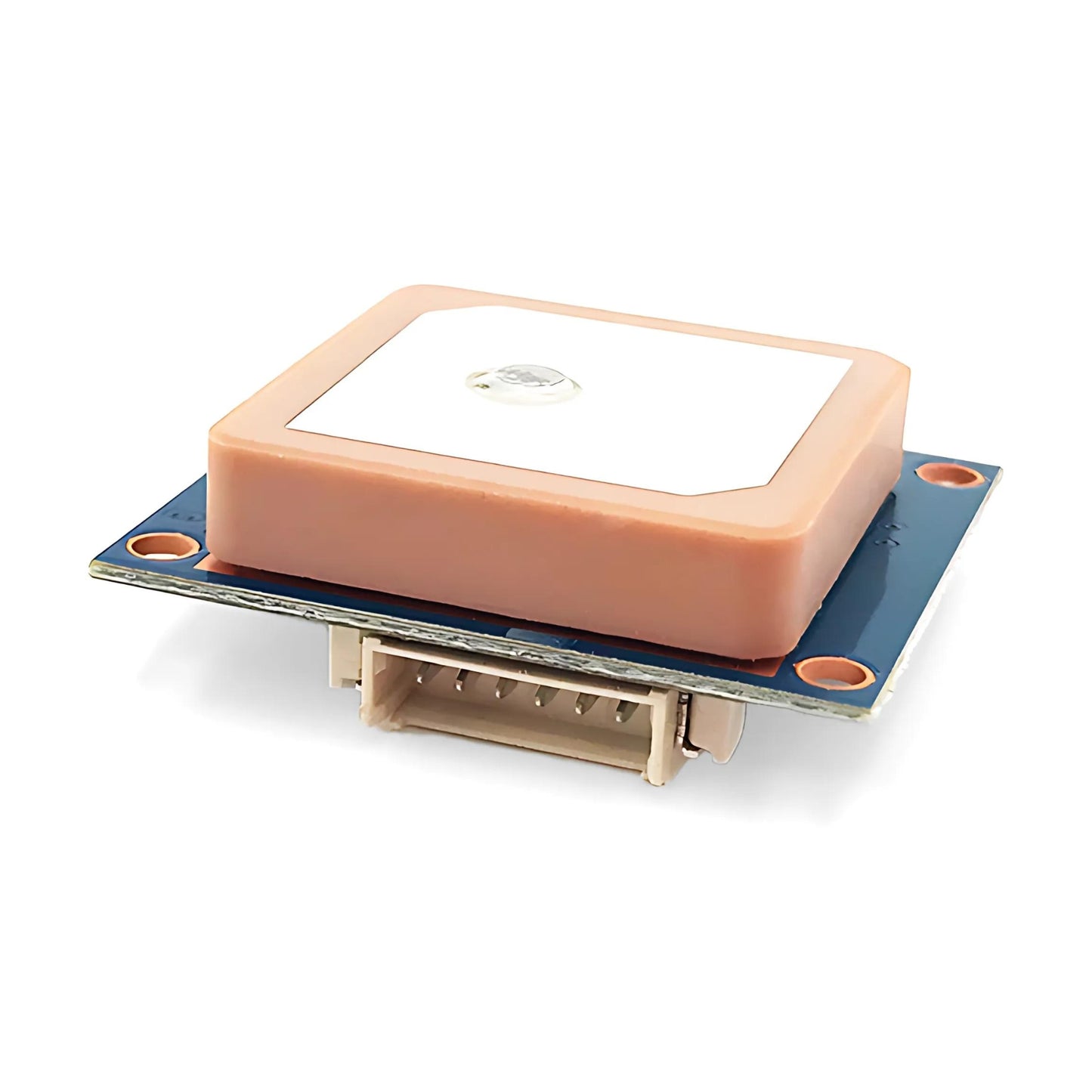

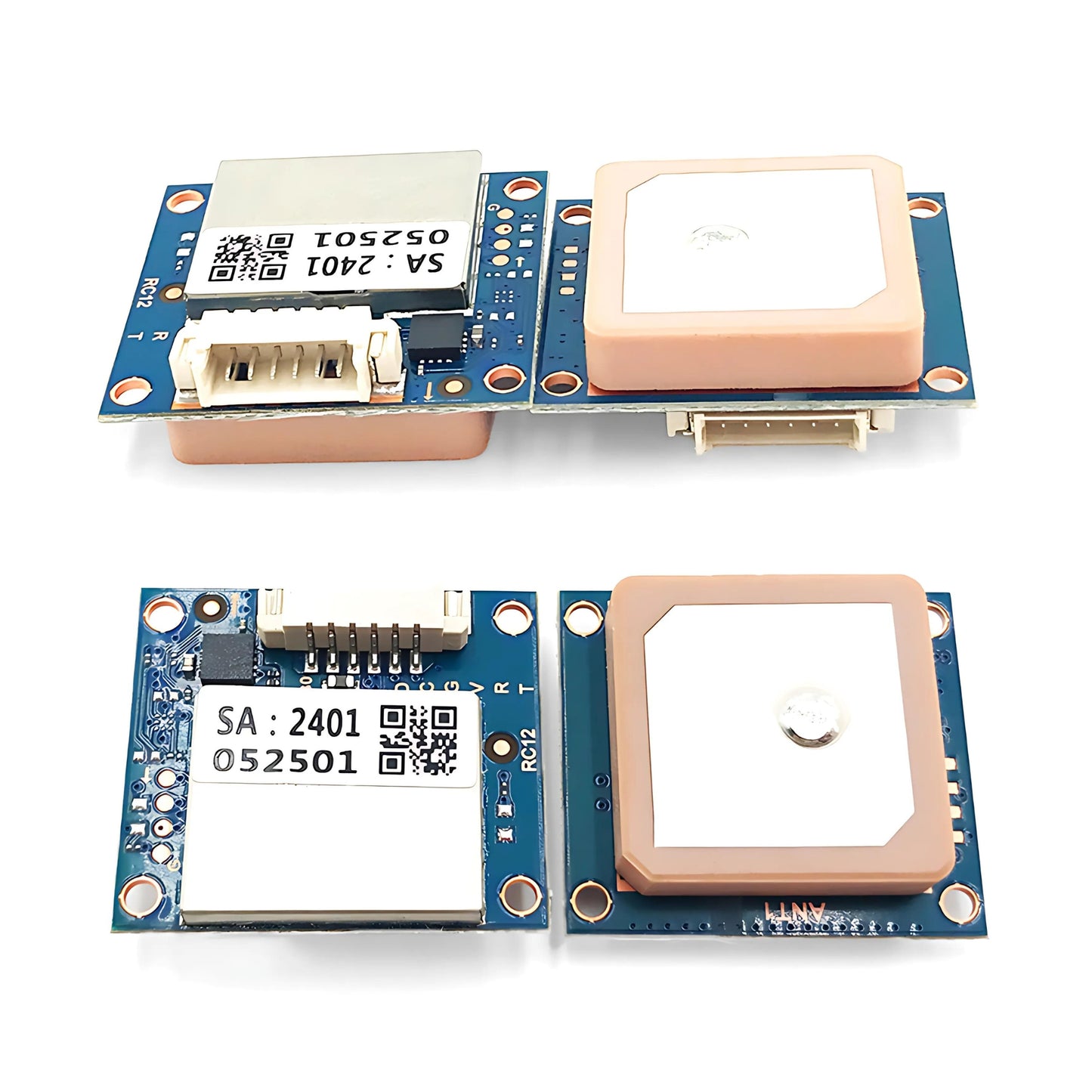

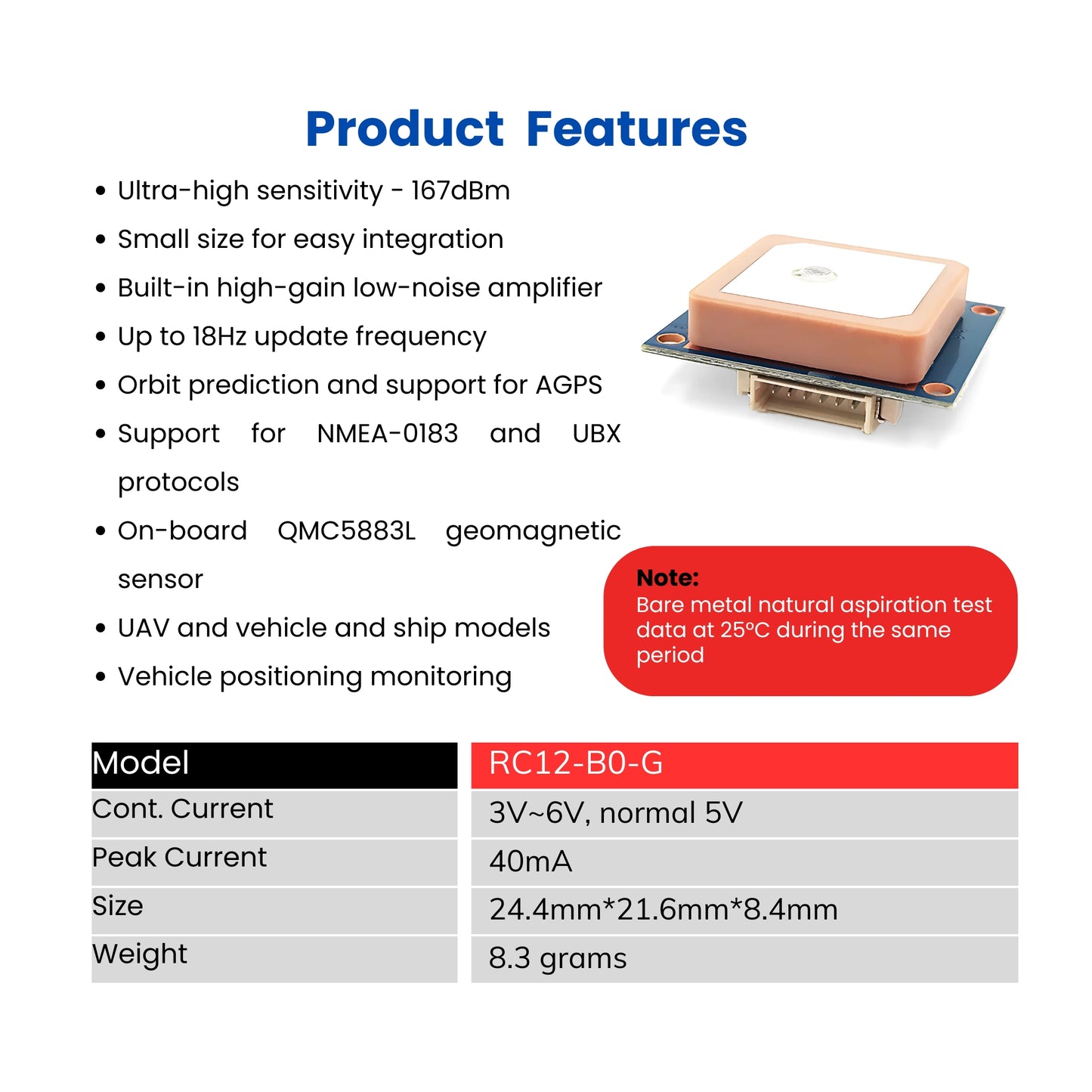

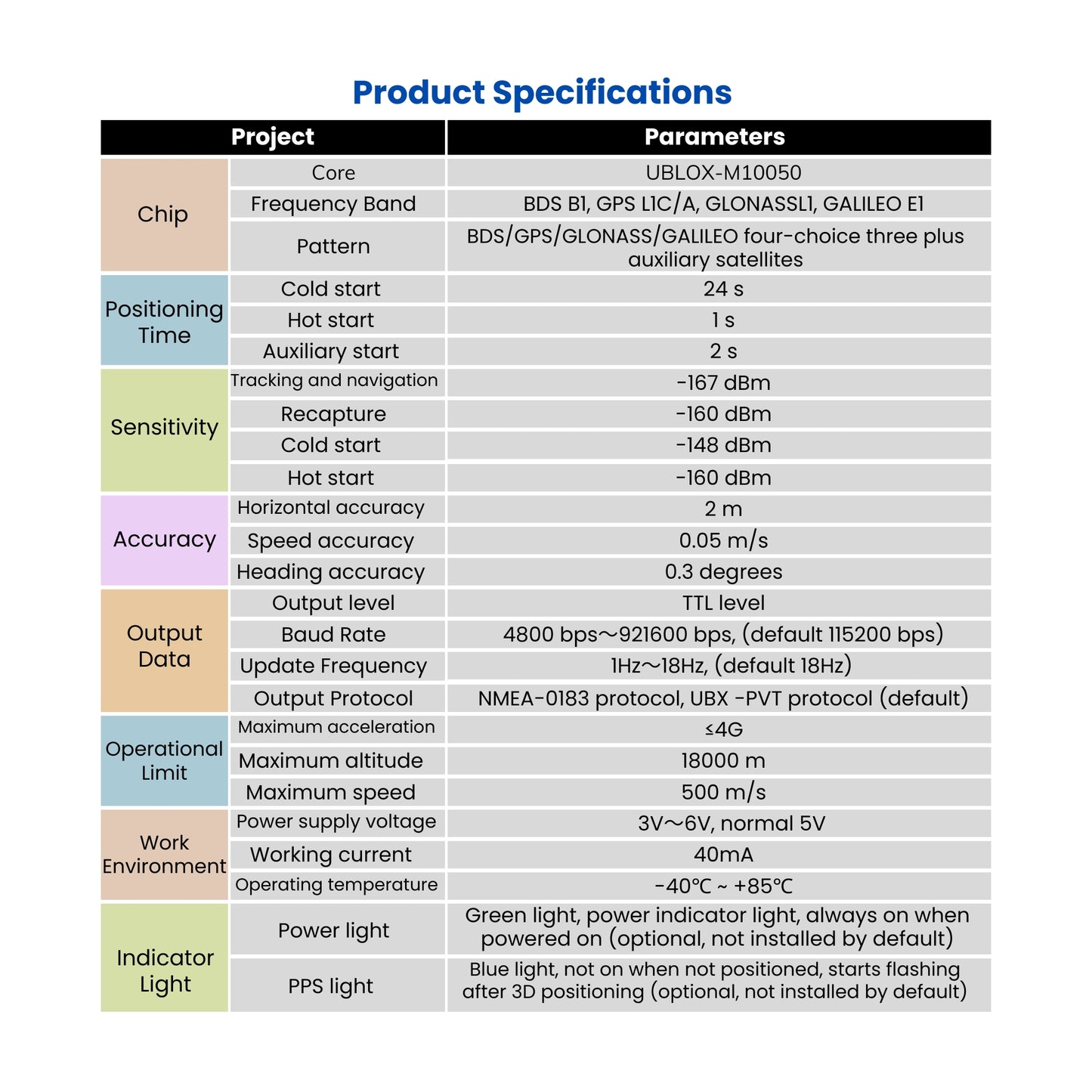

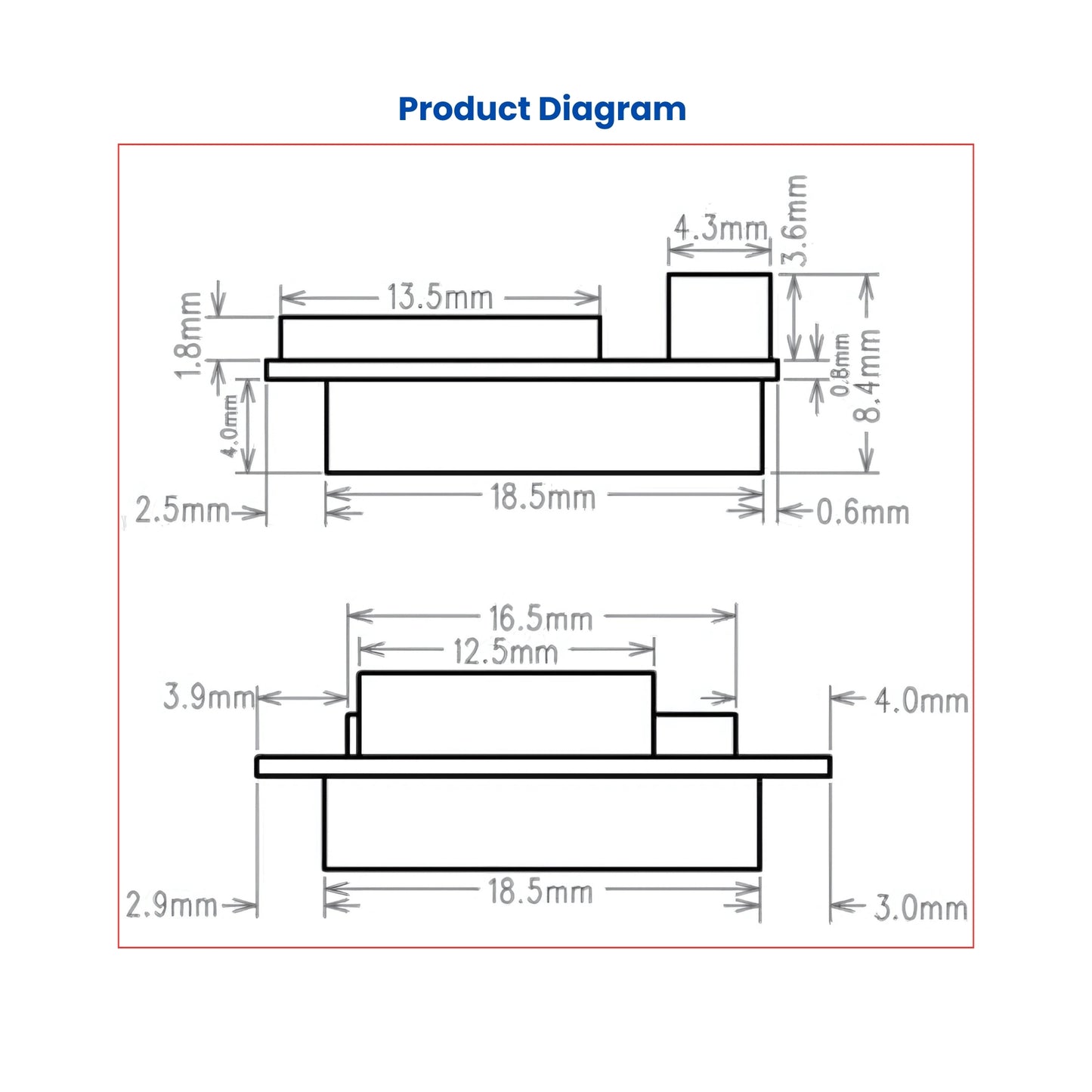

The RC12-B0-G GNSS Navigation Module is an advanced positioning solution engineered for UAVs, vehicles, and ships, offering multi-system compatibility with GPS, BDS, GLONASS, Galileo, QZSS, and SBAS. Featuring ultra-high sensitivity of -167dBm, 2m horizontal accuracy, 0.05 m/s speed accuracy, and 0.3° heading accuracy, it ensures precise navigation even in challenging environments. Powered by the UBLOX-M10050 core, it supports fast cold starts in 24 seconds, hot starts in 1 second, and update rates up to 18Hz. This module is compact (24.4 x 21.6 x 8.4mm), lightweight (8.3g), and energy-efficient (40mA at 5V). Additional features include a built-in high-gain low-noise amplifier, RF metal shielding for interference resistance, an onboard QMC5883L geomagnetic sensor, and support for NMEA-0183 and UBX protocols. Its rugged design supports up to 4G acceleration, 18,000m altitude, and speeds up to 500m/s, making it ideal for UAVs and vehicle tracking.
