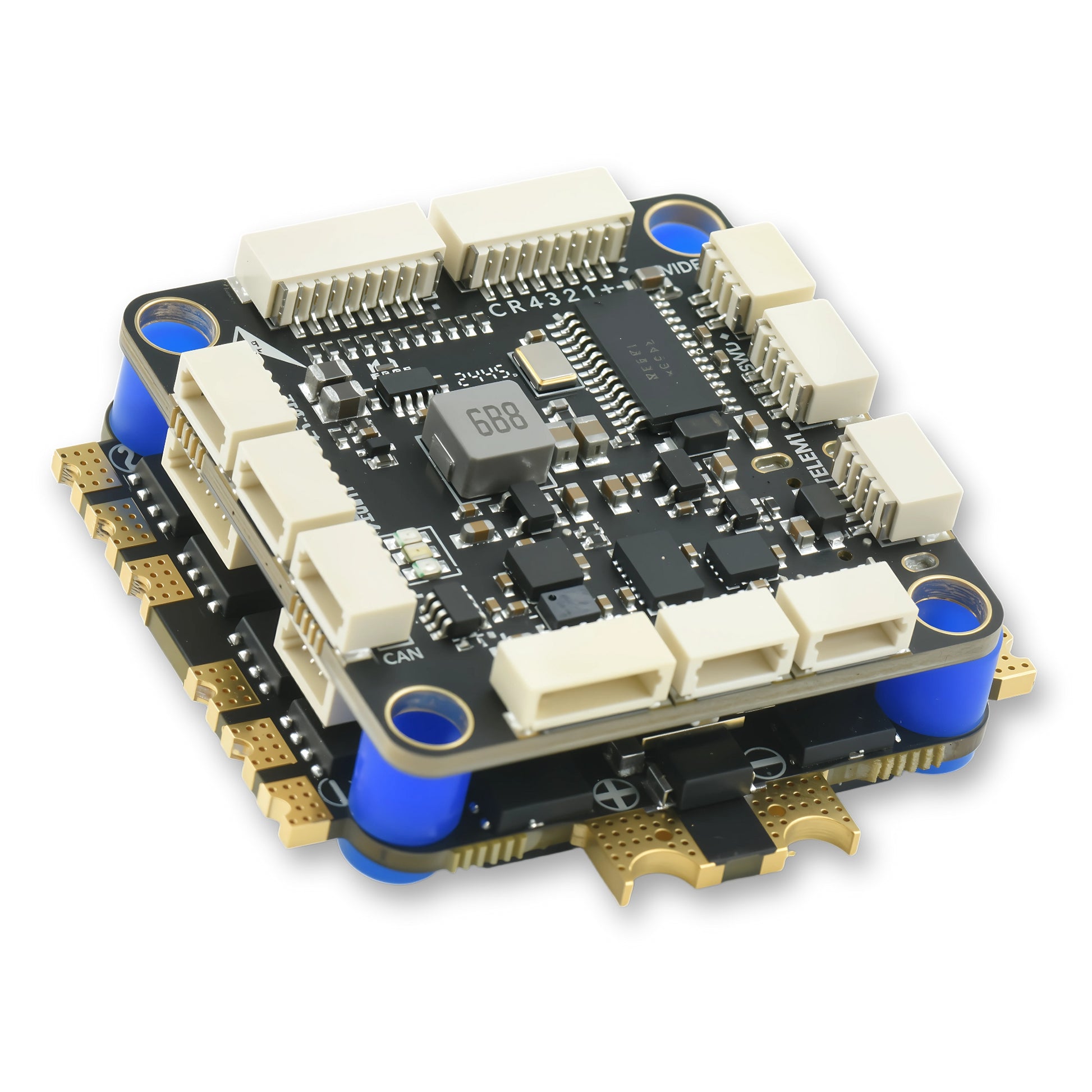

AERO SELFIE H743 Flight Controller Stack: 30x30 Stack with 45A 4in1 ESC Combo Supports Betaflight, Ardupilot, PX4, INAV, 6V-28V Input, 45A Continuous, DSHOT/PWM for FPV & UAVs

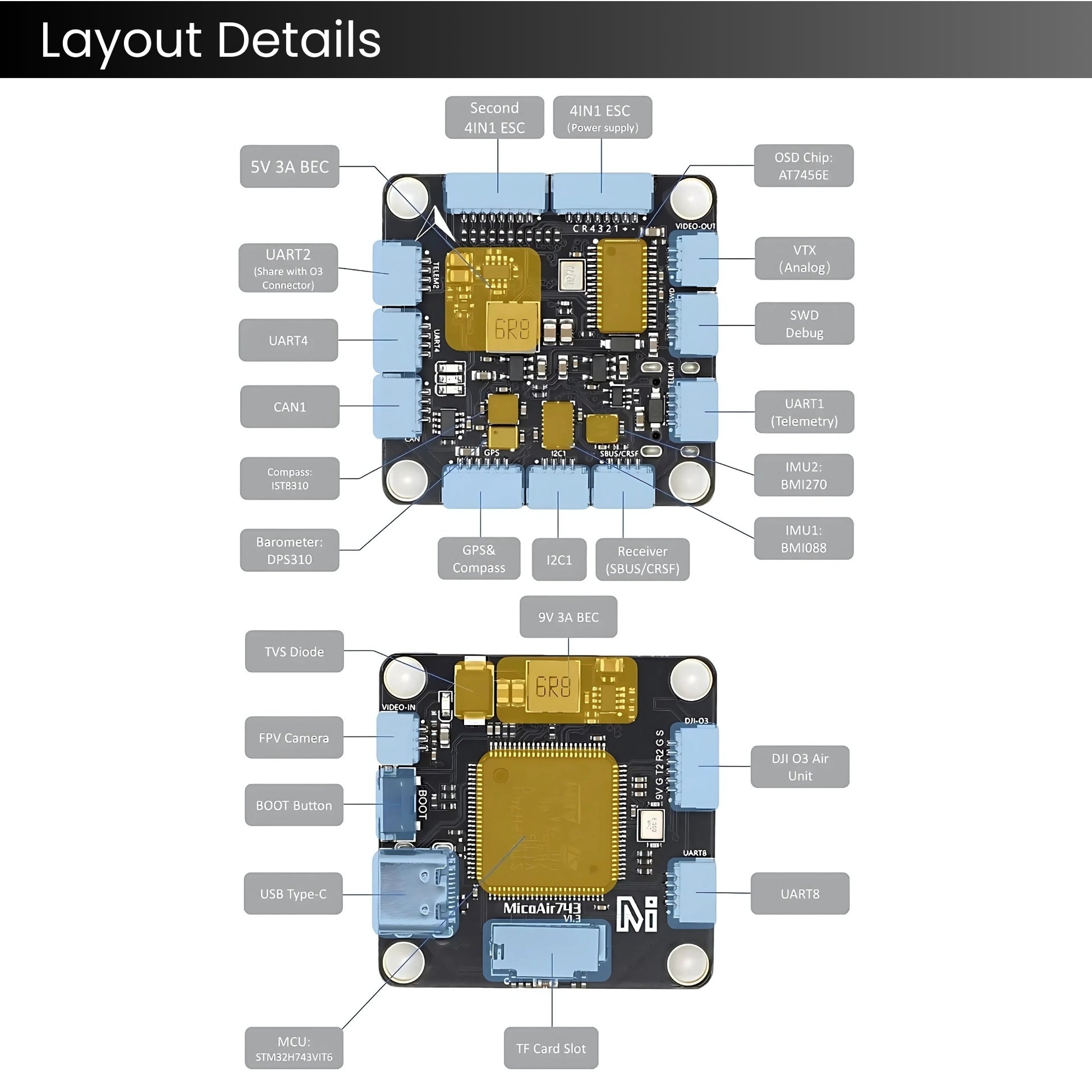

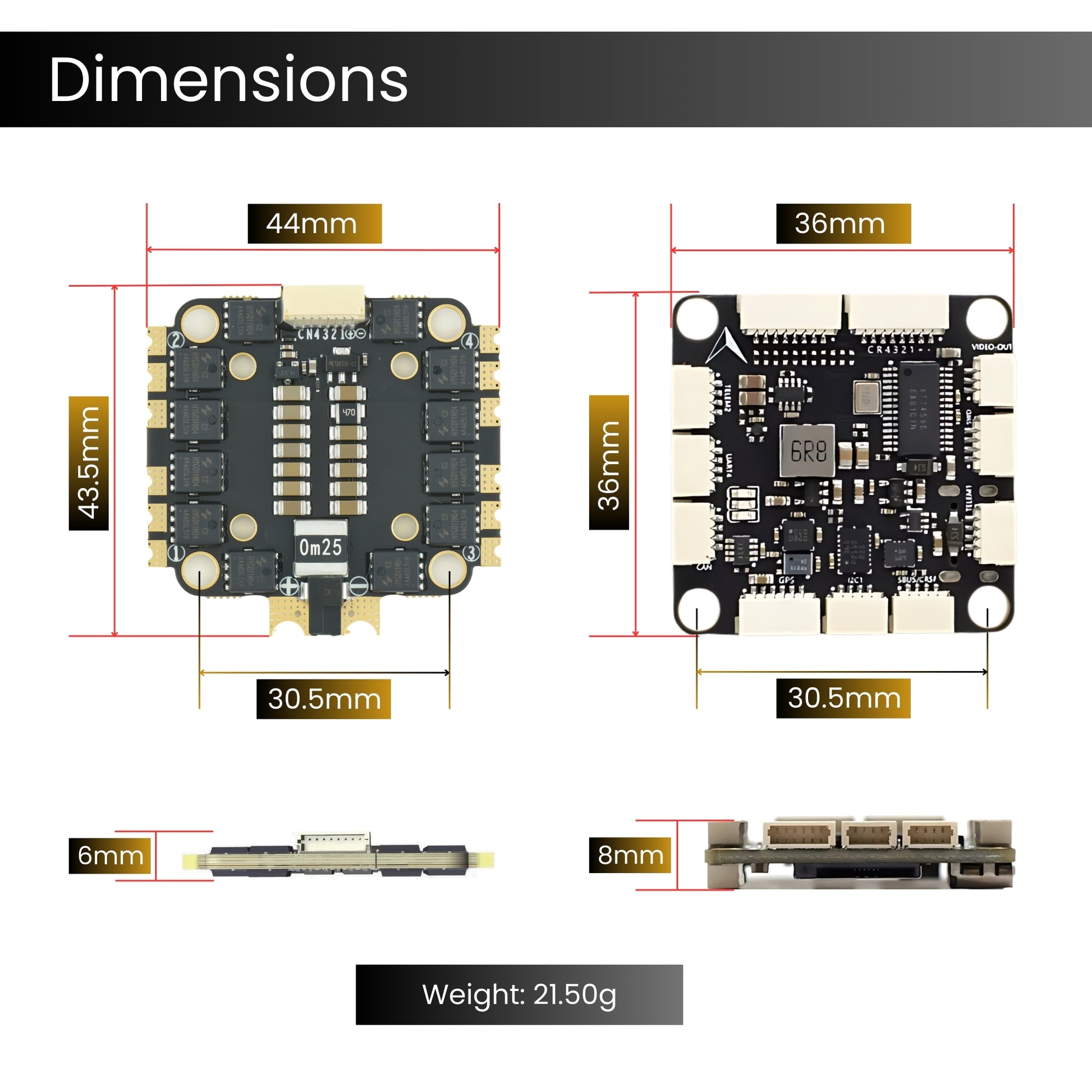

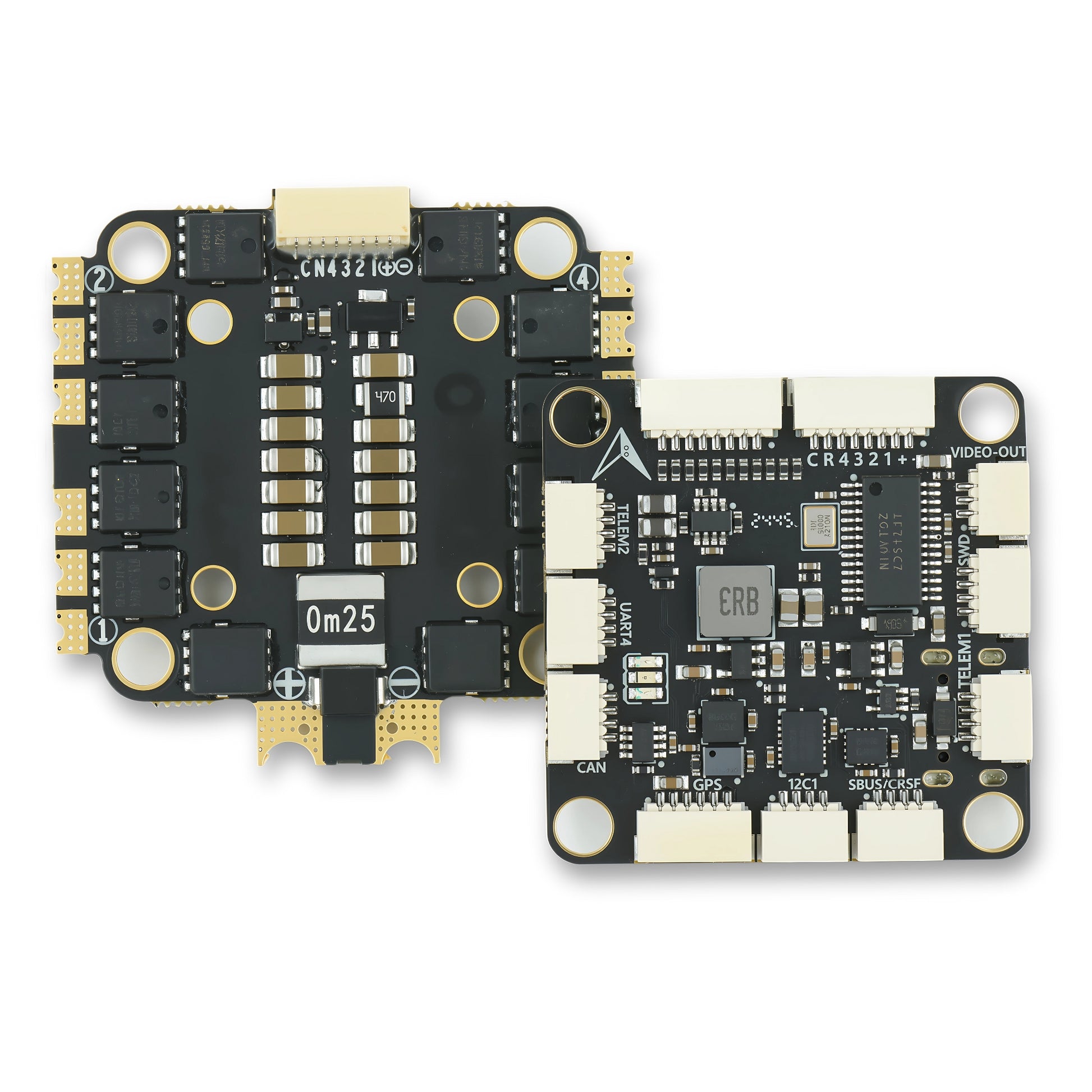

The AERO SELFIE H743 Stack combines the advanced AERO SELFIE H743 Flight Controller and the AERO SELFIE 45A 4in1 ESC for optimal drone performance. Powered by the STM32H743 processor, it features dual IMUs (BMI088/BMI270) for superior flight stability and precision. With built-in compass and barometer, the flight controller supports Betaflight, Ardupilot, PX4, and INAV, offering versatile firmware compatibility. The 45A 4in1 ESC provides reliable power handling, supporting 2S-6S LiPo batteries and delivering 45A continuous current per channel. It features high-frequency PWM, DSHOT, and ONESHOT protocols for smooth throttle response. The stack includes 7 UART ports, 10 PWM outputs, CAN, I2C, and an OSD for expanded sensor and peripheral integration. The compact 30.5x30.5mm mounting pattern ensures compatibility with most drone frames, while its lightweight design (total weight: 21.5g) simplifies installation. Ideal for drone enthusiasts and professionals seeking stability, responsiveness, and ease of integration.
